MACHINES > Packaging Machinery > Vacuum Tray Sealer

60% Complete

  Automatic tray sealer & Manual tray sealer

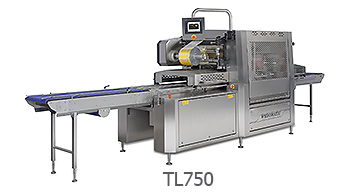

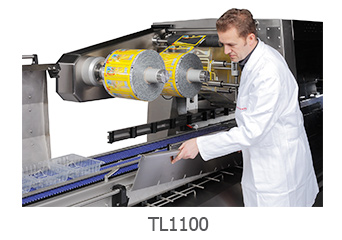

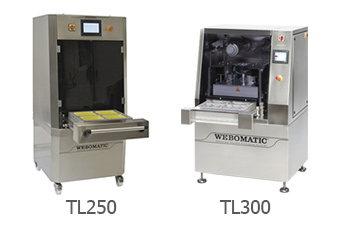

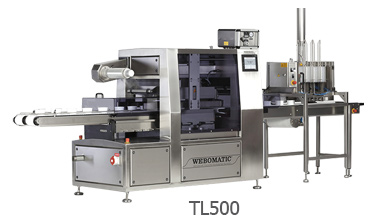

Models: TL 250, TL300, TL500/TL500-duo, TL750/TL750-duo, TL 1100

  • To pack food products in Trays using Vacuum and/or Gas Flushing
  • capacity: from 2~15 cycle per minute
  • vacuum pumps: Busch 63m3/h~300m3/h as option (external pump)
  • Sealing die 1 fold 400x300x120 mm: TL 250 & TL300
  • Sealing die 1 fold 510 x 280 x 120 mm: TL 500
  • Sealing die 8 fold 115 x 120 x 120 mm: TL 500-duo
  • Sealing die 1 fold 400 x 680 x 120 mm: TL 750
  • Sealing die 8 fold 190 x 155 x 120 mm: TL 750-duo
  • Sealing die 1 fold 1.020 x 280 x 120 mm: TL 1100
  • weight 375 kg TL 300 model and 2200 kg TL 1100 model
  • easily changeable of the die sets
  • control PLC, Touch screen

Options:

  • Pseudo-skin only for TL 300 ,TL 500,TL 750,TL 1100 model
  • photocell
  • O2 injection more than 21%
  • Gas Mixing Unit for 3 gases
  • Liquid separation from the vacuum pump.
  • Inside cut
  • labeling system
  • Peeling flap
  • inside cut
  • Single Cavity Control (SCC) only for TL 750 & TL1100
  • Gas analyzing device only for TL 1100 mode

Peripheral devices only for TL 1100:
    – tray magazine
    – dosing system
    – automatic lieder
Other peripheral devices on request
